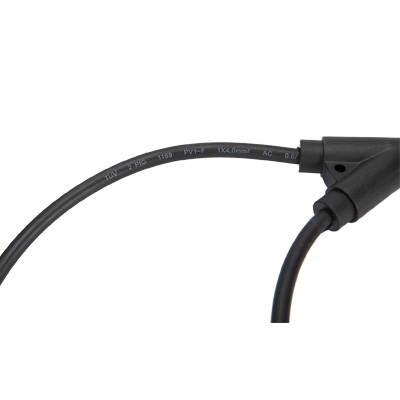

MC4 Y type branch with cable

  • Product information
  • Name: MC4 Y type branch
  • Brand: Maylar
  • Item:  MCY
  • Color: Black
  • Features:
  • This connector select high-quality PPO material as MC4 connector insulation and high-quality copper and tinned as MC4 conductor,  with dustproof, waterproof, aging resistance, UV endurance,small&ligth, easy connection, safety and long life time features and so on.

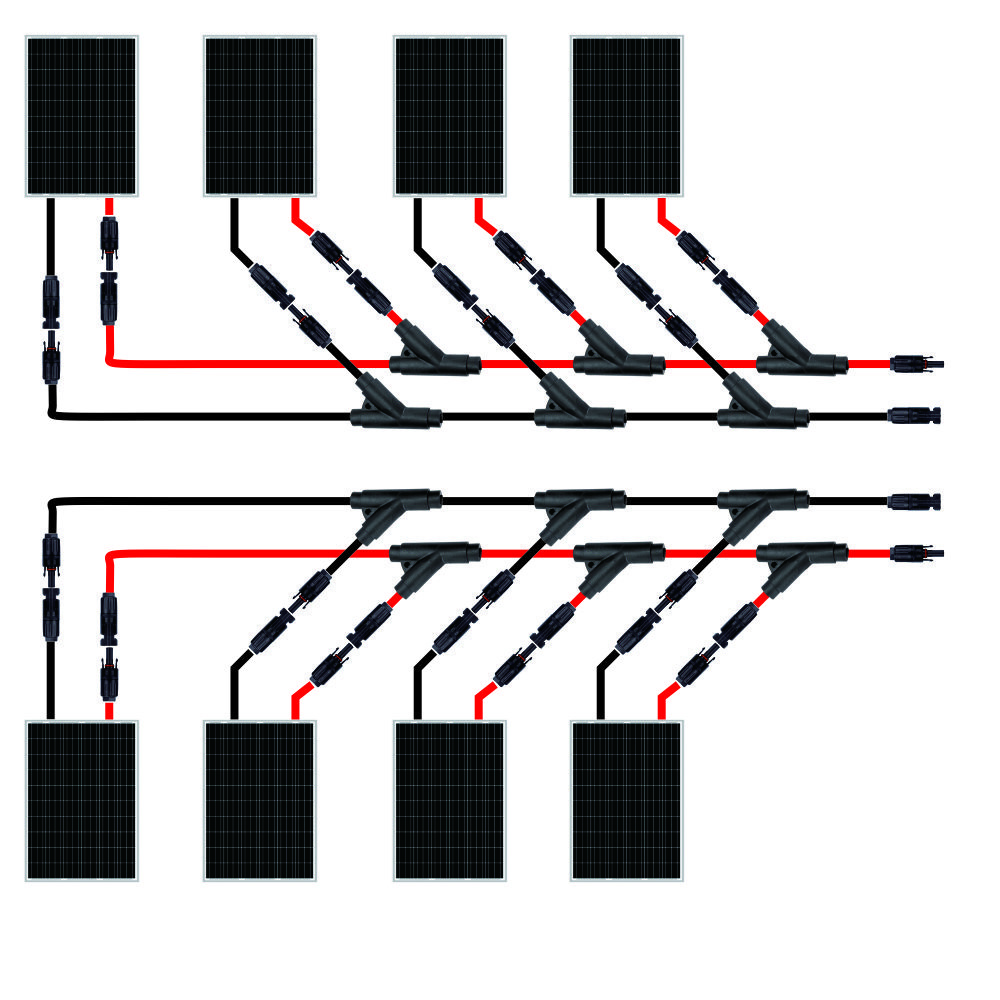

  • This product can suitable for all standard MC4,normally used with the solar panel DC output terminal or extended PV cable.
  • Apapt clamping and confining way to connect the cable and connector, the male and female connector with stable self-locking structure, withdrawal and insertion freely.
Parameter table:
  Product name   MC4 Y type branch with cable
  Rated voltage   TUV 1000V DC / UL 600V DC
  Rated current   20A ~ 30A
  Core size   Φ4.0mm
  Voltage   TUV 6000V AC(1Min) / UL 2200V DC(1Min)
  Pollution class   2
  Protection class   Class Ⅱ
  Core material   Copper,Silver plated
  Contact Resistance   ≤ 5mΩ
  Insulation material   PPO
  IP class   IP67(IEC 60529)
  Withdrawal force   ≥ 50N
  Insertion force   ≤ 50N
  Test temperature   -40℃ ~ +85℃
  Flam class   UL94V - 0
