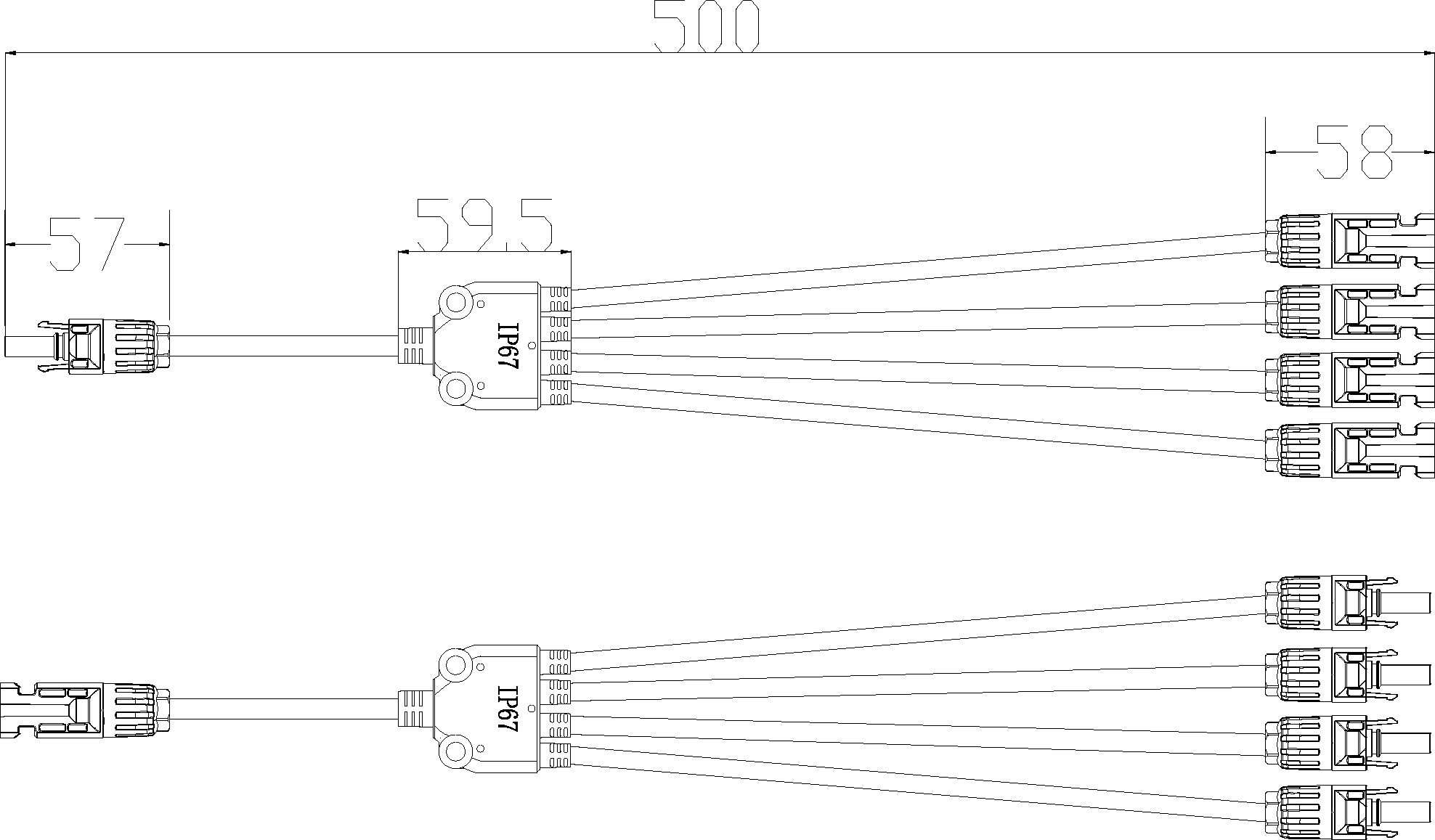

PV MC4 Y type branch 4 to 1 with DC cable

Product information

  • Name: MC4 Y type 4 to 1 connector
  • Brand: Maylar
  • Item:  MCY401
  • Color: Black


  • This connector select high-quality PPO material as MC4 connector insulation and high-quality copper and tinned as MC4 conductor,  with dustproof, waterproof, aging resistance, UV endurance,small&ligth, easy connection, safety and long life time features and so on.
  • This product can suitable for all standard MC4,normally used with the solar panel DC output terminal or extended PV cable.
  • Apapt clamping and confining way to connect the cable and connector, the male and female connector with stable self-locking structure, withdrawal and insertion freely.

Parameter table:

  Product name  MC4 4 to 1 connector
  Rated voltage  TUV 1000V DC / UL 600V DC
  Rated current  20A ~ 30A
  Cable size 4mm2 /6mm2
  Core size  Φ4.0mm
  Voltage  TUV 6000V AC(1Min) / UL 2200V DC(1Min)
  Pollution class  2
  Protection class  Class Ⅱ
  Core material  Copper,Silver plated
  Contact Resistance  ≤ 5mΩ
  Insulation material  PPO
  IP class  IP67(IEC 60529)
  Withdrawal force  ≥ 50N
  Insertion force  ≤ 50N
  Test temperature  -40℃ ~ +85℃
  Flam class  UL94V - 0
  Length  31.5cm
