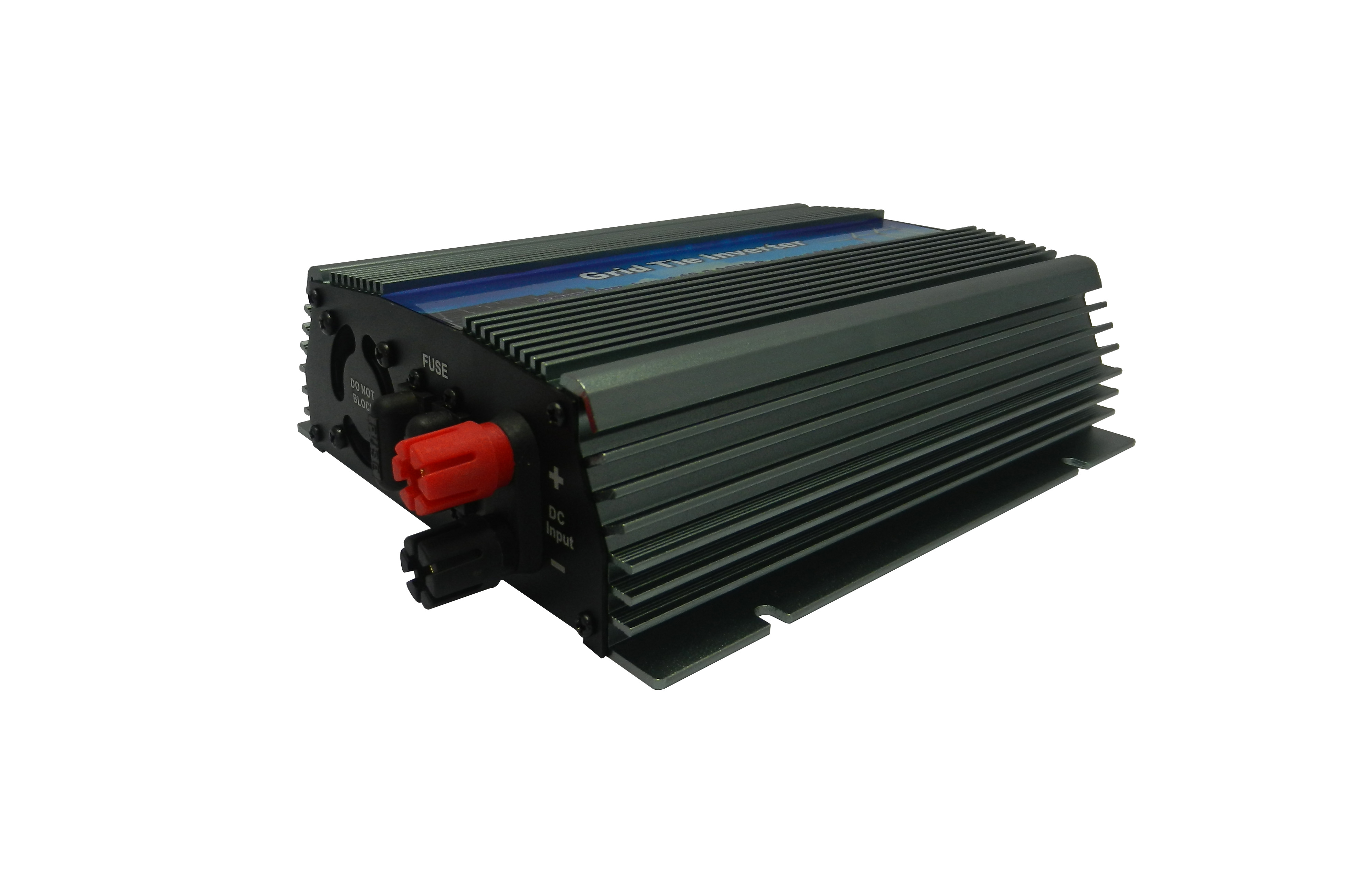

Mini indoor Grid Tie Inverter WV300W22-50V

Product information:
    • Name: Grid tie inverter WV300w22-50V
    • Brand: Maywah
    • Item:  WV300W
    • Color:  Silver grey
    • Features
    • Adapt precise MPPT and APL function, the inverter automatically adjust the solar panels of maximum output.
    • AC phase angel of 0 through isolation amplifier then input to the MCU for high-precision detection and analysis. The phase shift rate is less than 1%, thus achive high-precision with phase modulation AC output together.
    • Adapt SPWN technology to make pure sine wave output.
    • When the grid utility fault or off, the inverter will use the anti-islanding protection to shut down the system automatically.
    • Multi in parallel to achive large power output.
Grid-series models 300W 500W 800W 1000W
Recommend use solar panels 420W 620W 100W 1150W
DC Maximum Input Power 400W 600W 900W 1100W
DC maximum voltage 50.2VDC
DC voltage range 20-50VDC(Recommend PV Vmpp28-40V)
AC output power 300W 500W 800W 1000W
Anti-voltage protection Fuse
AC standard voltage range 90V-140/180~260VAC
AC frequency range 55Hz~63Hz/ 45Hz-53Hz
Output current total harmonic distortion THDIAC <5%
Phase <1%
Islanding protection VAC;f AC
Output short circuit protection  Current-limiting
Show  LED
Installation Wall hanging
Cooling Fan
Standby Power <2W
Night Power <1W
Ambient temperature range -25 ℃~60℃
Humidity 0~99%(Indoor Type Design)
Waterproof Indoor Type Design
Electromagnetic Compatibility EN50081.part1   EN50082.part1
Power System Disturbance EN61000-3-2  EN60950-1
Network test DIN VDE 1026
Project case
Installation place:Dongguan
Installation year:2013
System power:3000W
Project case
Installation place:Dongguan
Installation year:2013
System power:3000W
